Thermal barrier
Reduces conductive heat flow through metal roofs, ducts, pipes and equipment housings.
CLOSED-CELL ELASTOMERIC FOAM · SELF-ADHESIVE
Rubber-Plastic
Acoustic
Insulation
A flexible closed-cell insulation layer engineered to slow heat transfer, reduce condensation risk and damp vibration-borne noise in roofs, ducts, pipes, walls and equipment enclosures.
Request a QuoteTHERMAL + ACOUSTIC CONTROL
One flexible layer.
Two kinds of control.
The closed-cell structure resists air and moisture movement, helping the assembly retain temperature and avoid surface condensation. Its resilient body also decouples light vibration and reduces rattling and structure-borne noise. Final acoustic performance depends on the complete construction.
Acoustic damping
Adds a resilient layer that helps calm panel vibration, mechanical rattle and transmitted noise.
Self-adhesive fit
Peel-and-bond backing speeds installation across flat, curved and irregular substrates.
Closed-cell protection
Low-permeability foam helps manage moisture and condensation in conditioned assemblies.
PRODUCT FORMAT
Sized for practical installation.
Choose the thickness for the required thermal resistance, cavity depth and damping duty. Aluminum-foil facing can be specified where a reflective, cleanable surface is preferred.
MaterialFlexible closed-cell rubber-plastic elastomeric foam
Width1000 mm
Thickness5–50 mm
BackingPressure-sensitive self-adhesive
FacingPlain black or aluminum-foil faced
Supply formRolls / cut sheets
Primary functionsThermal insulation, condensation control, vibration damping and supplementary sound insulation
INSTALLATION
Build a continuous thermal and vibration-control layer.
Prepare
Clean and dry the substrate; remove oil, dust, loose coating and sharp projections.
Cut and plan
Dry-fit pieces around penetrations. Keep joints tight and avoid compressed gaps.
Peel and bond
Remove the release liner progressively, press from the center outward and roll firmly.
Seal continuity
Tape or seal joints, corners and penetrations to maintain the thermal and condensation-control layer.
PROJECT APPLICATIONS
From roofs to pipework.
The same flexible system adapts to industrial, commercial and residential surfaces. Correct thickness, facing and joint treatment should be selected for the operating environment.

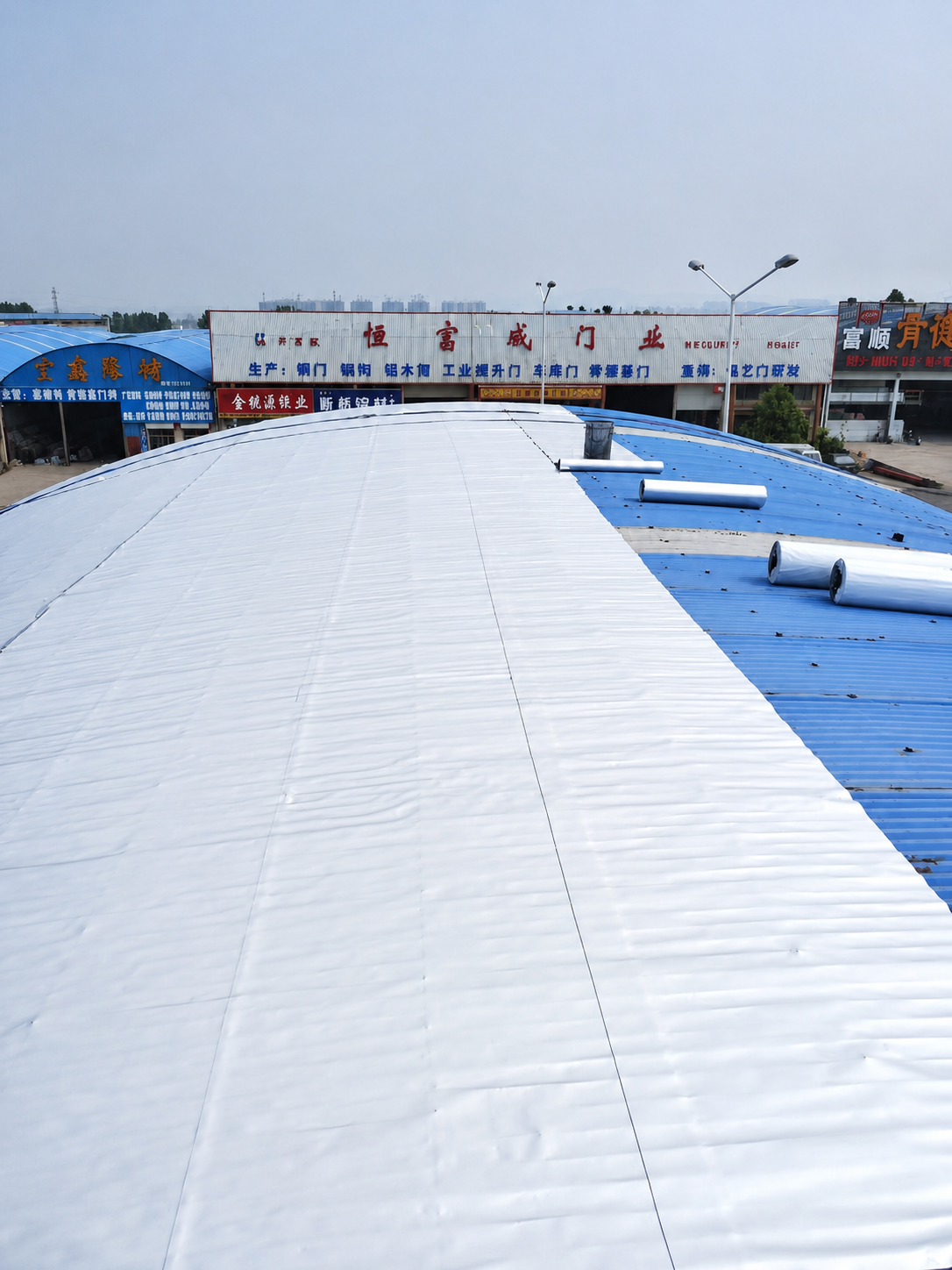

Industrial roof insulation
Continuous foil-faced coverage helps limit radiant heat gain across large metal-roof areas.

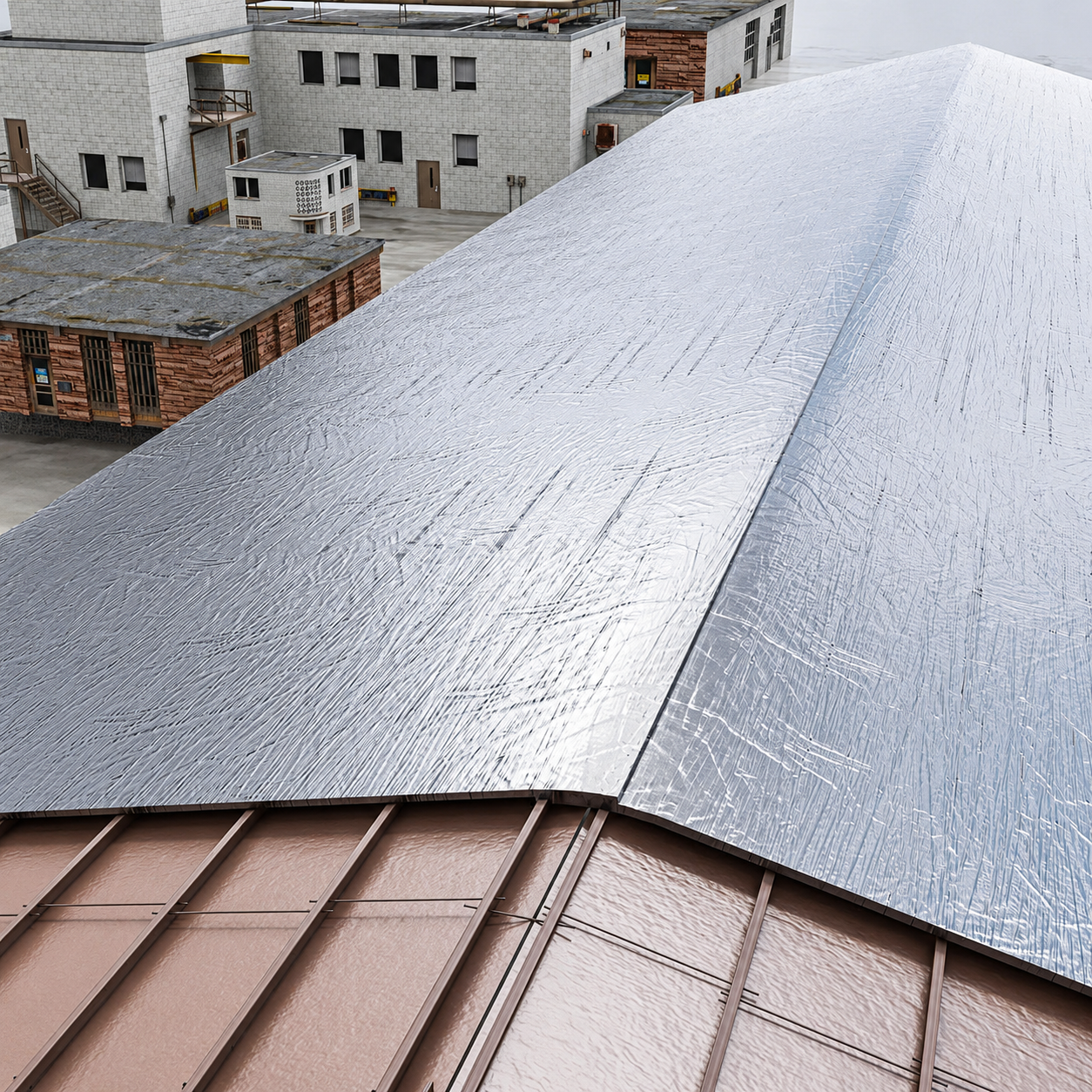

Weather-exposed roof build-up
Flexible rolls follow roof geometry and create a continuous thermal layer beneath the final protective system.

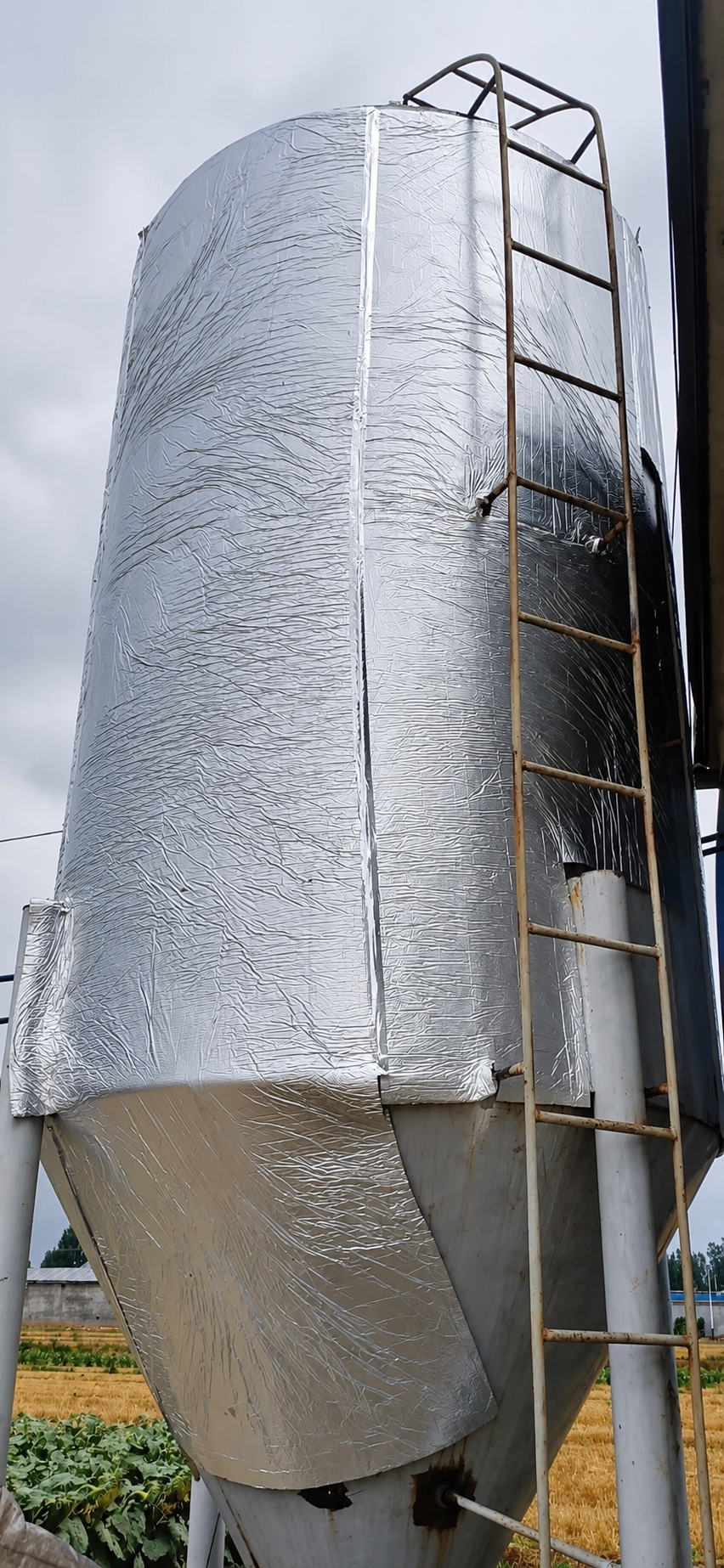

Tank and equipment insulation
Closed-cell foam conforms to curved equipment to reduce heat transfer and help control condensation.

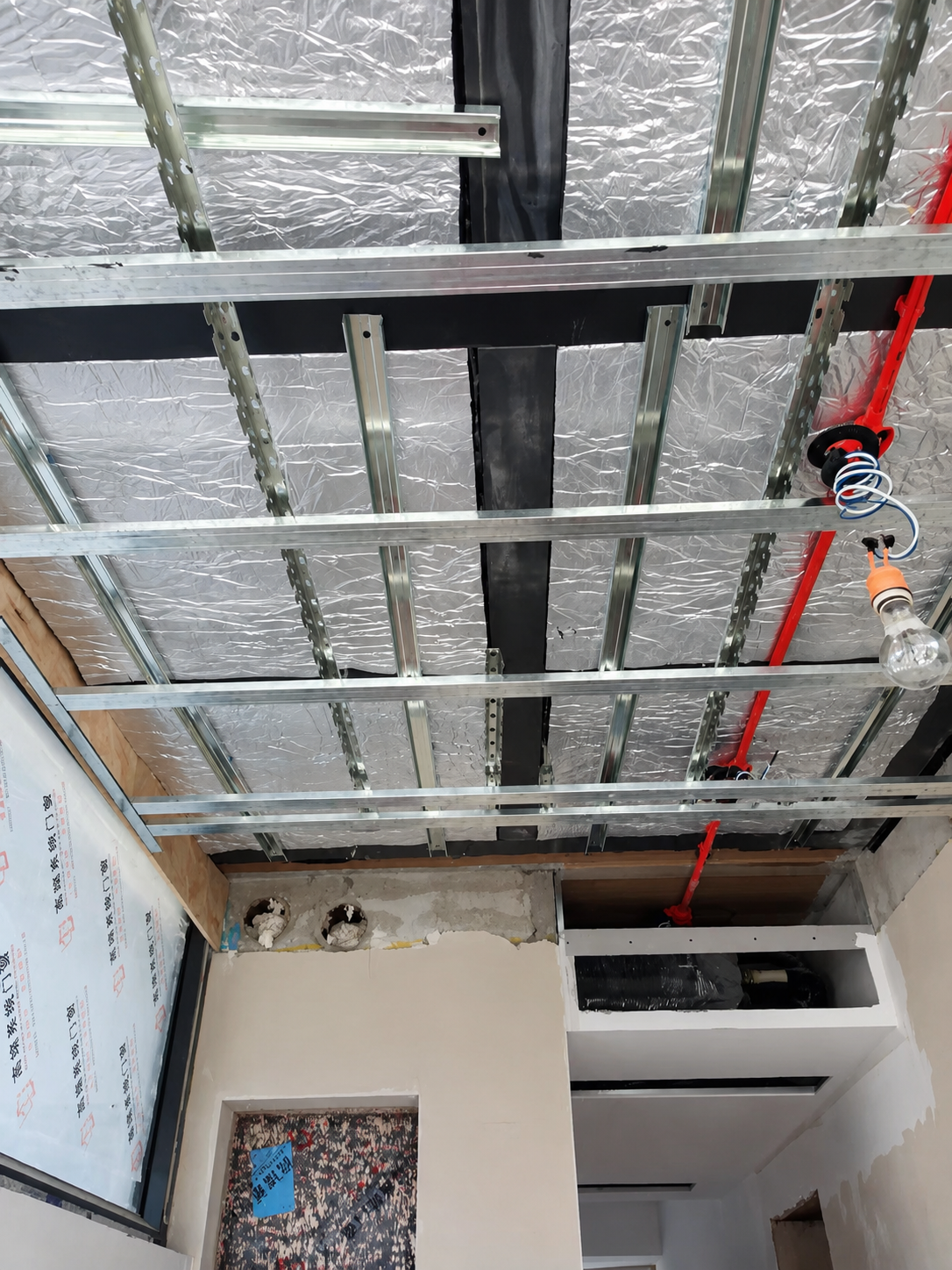

Ceiling and service zones
Installed behind the finished ceiling to damp vibration and improve the thermal performance of the cavity.

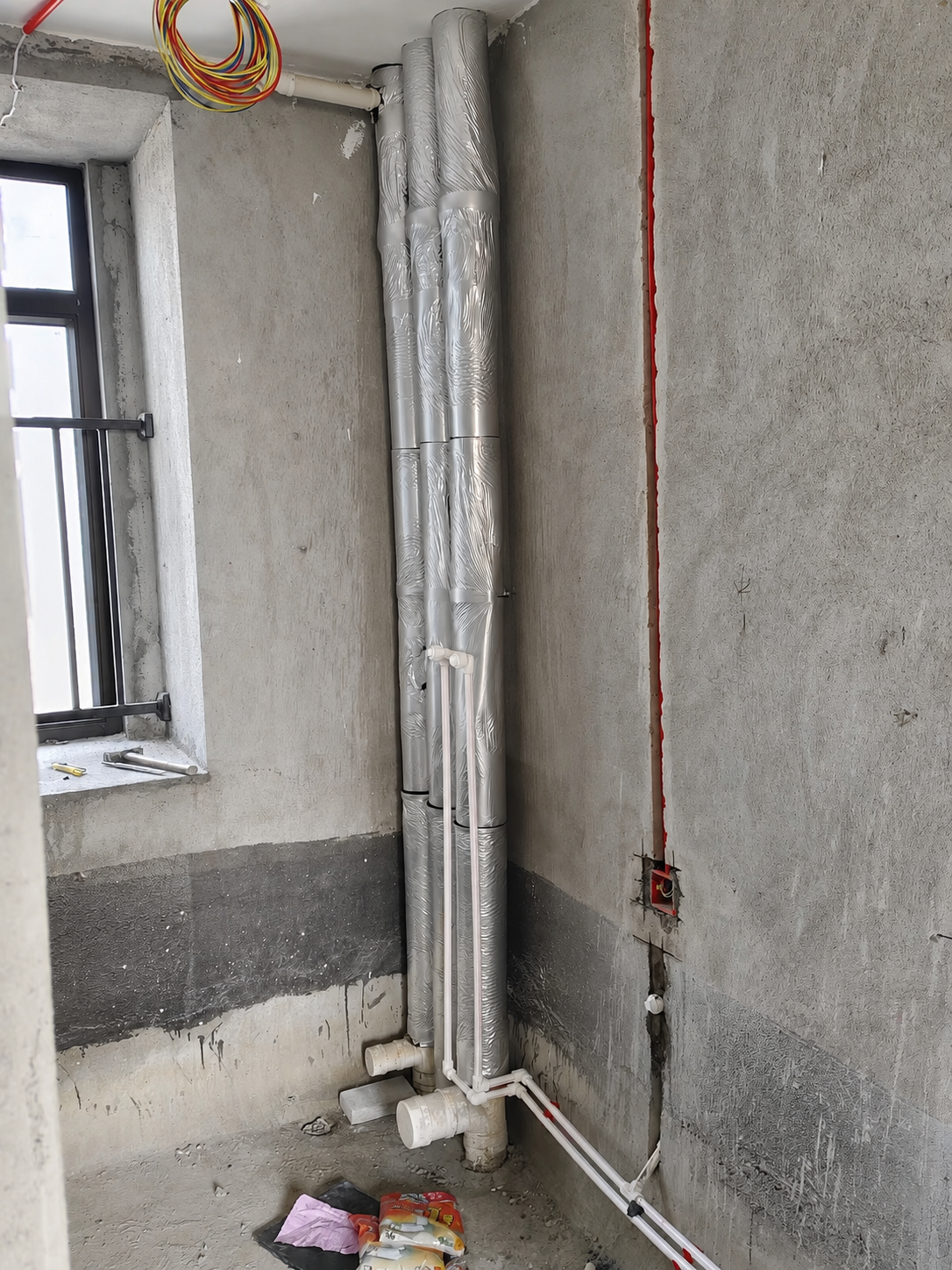

Pipework applications
A practical self-adhesive layer for service pipes where thermal control, moisture resistance and quiet operation matter.

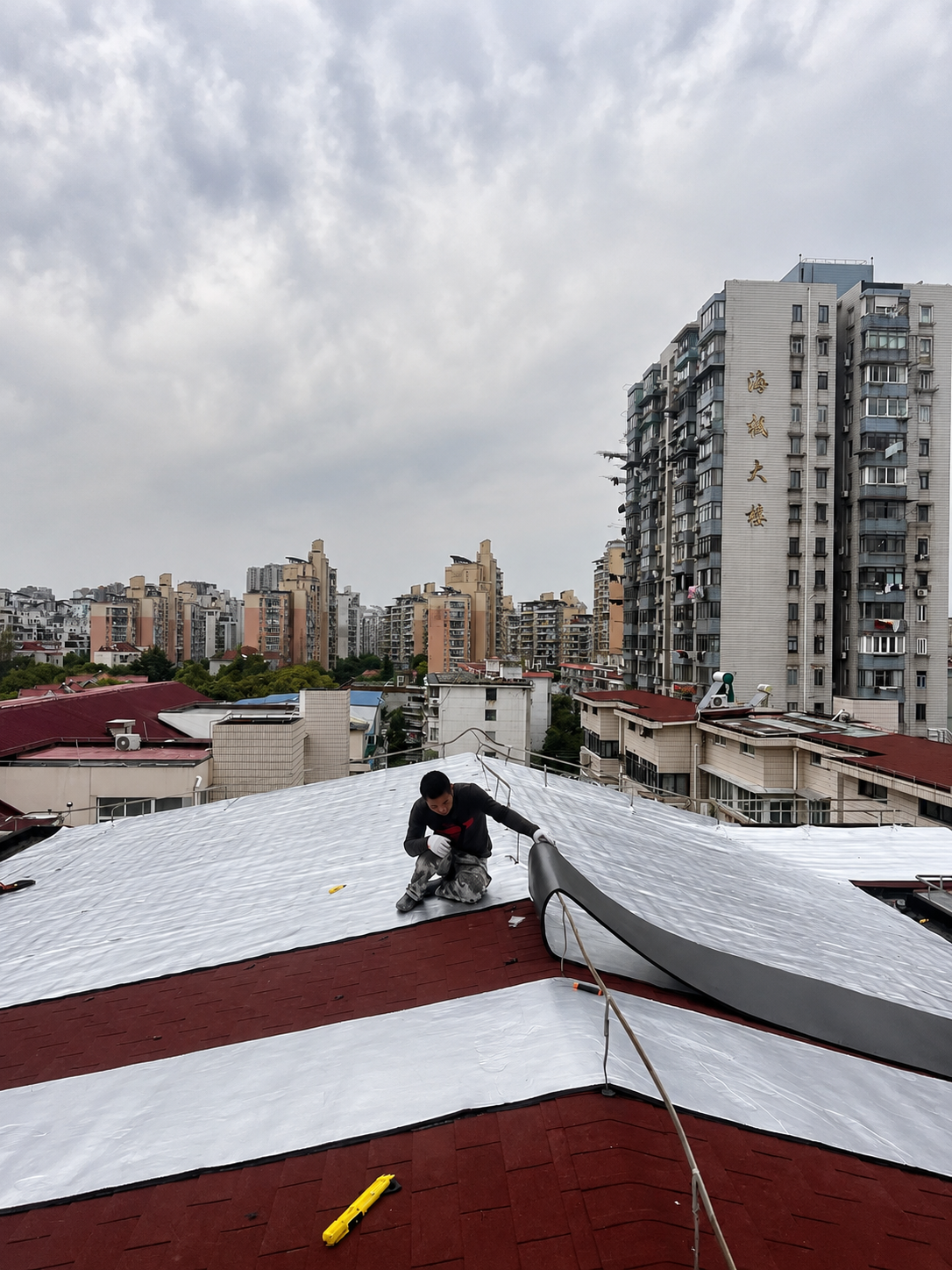

Residential roof retrofit
Lightweight rolls can be cut and bonded around existing roof details for renovation projects.
